Base makeup powder product to which NSG glass and silica technology is utilized : MAR'VINA®



Product summary
The major characteristics of SILKYFLAKE® are its transparency and gloss. Because it is borosilicate glass-based, it is durable and has excellent protection against dulling. Natutect™ is an infrared reflective additive that reflects near-infrared rays reducing the risk of damaging subcutaneous tissue, giving the skin a natural skin pigmentation or white color appearance while protecting it. i-NAFLECS® (titanium dioxide encapsulated type), can be used as an alternative material to microplastics, as the silica particles provide a blurring effect that naturally covers pores and blemishes. GLACIA DROPS® is a non-porous glass bead with a soft texture.

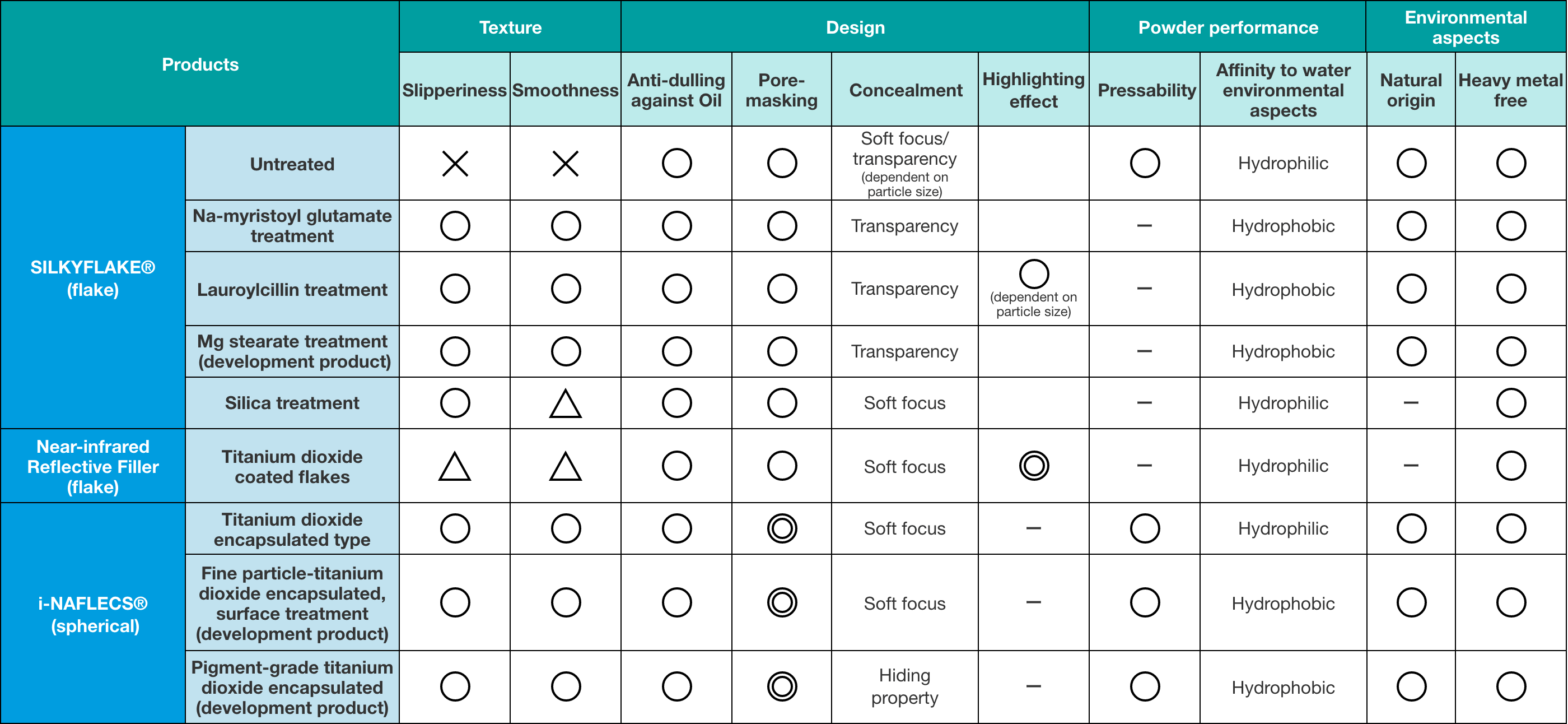

MAR'VINA® is the base makeup powder product that utilizes all four of these product groups.
Natural and skin-friendly cosmetic powder
MAR'VINA® is a powder designed for easy use in base makeup cosmetics. Made from carefully selected natural ingredients, these products are gentle and kind to the skin and the environment and have a high natural origin index (ISO 16128).
MAR'VINA® is chemically stable and almost completely free of heavy metals.
1)SILKYFLAKE®
Glass flake with an environmentally friendly, low alkali, low heavy metal, boron-free TA glass, which is made from carefully selected glass materials (TA glass composition: NSG original). As a glass manufacturer, NSG, has developed its own glass flake forming technology to control flake thickness and particle size. This enables to offer a wide range of products.
2)Natutect™
High degree of near-infrared reflection is achieved by controlling thickness of the titanium dioxide coated on glass flake at nano meter level. With such a fine flake thickness and particle size, the coated flake is expected to provide natural toning effect on skin.
3)i-NAFLECS®
Highly dispersed pigments are encapsulated in silica structure. This achieves both a light scattering effect and prevent elution of the pigment.
4)GLACIA DROPS™
True spherical, non-porous glass beads made from NSG's original composition glass. They conform to the skin and provide a natural finish. It is soft to the touch and can be used as a micro-plastic bead substitute.

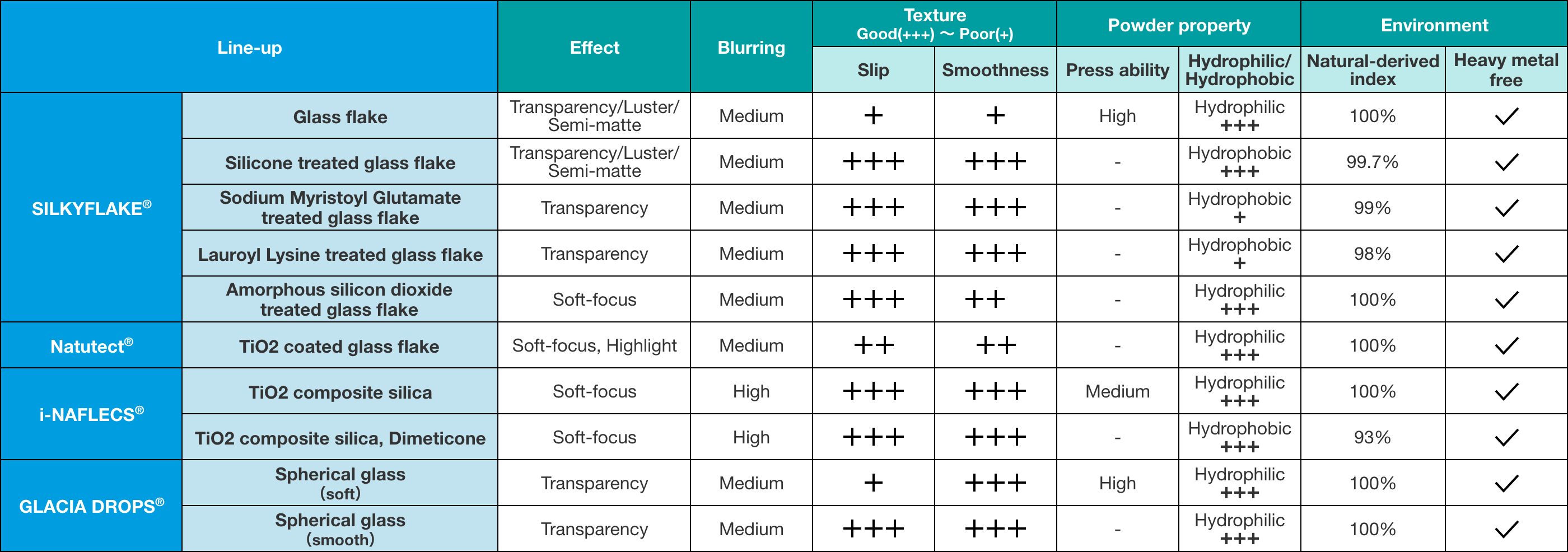

MAR'VINA® line-up
SILKYFLAKE®
Glass flake with an environmentally friendly, low alkali, low heavy metal, boron-free TA glass, which is made from carefully selected glass materials (TA glass composition: NSG original). As a glass manufacturer, NSG, has developed its own glass flake forming technology to control flake thickness and particle size. This enables to offer a wide range of products. In particular, the 8µm type is extremely thin glass with a sharp particle size distribution. This enables it to have an even finish.

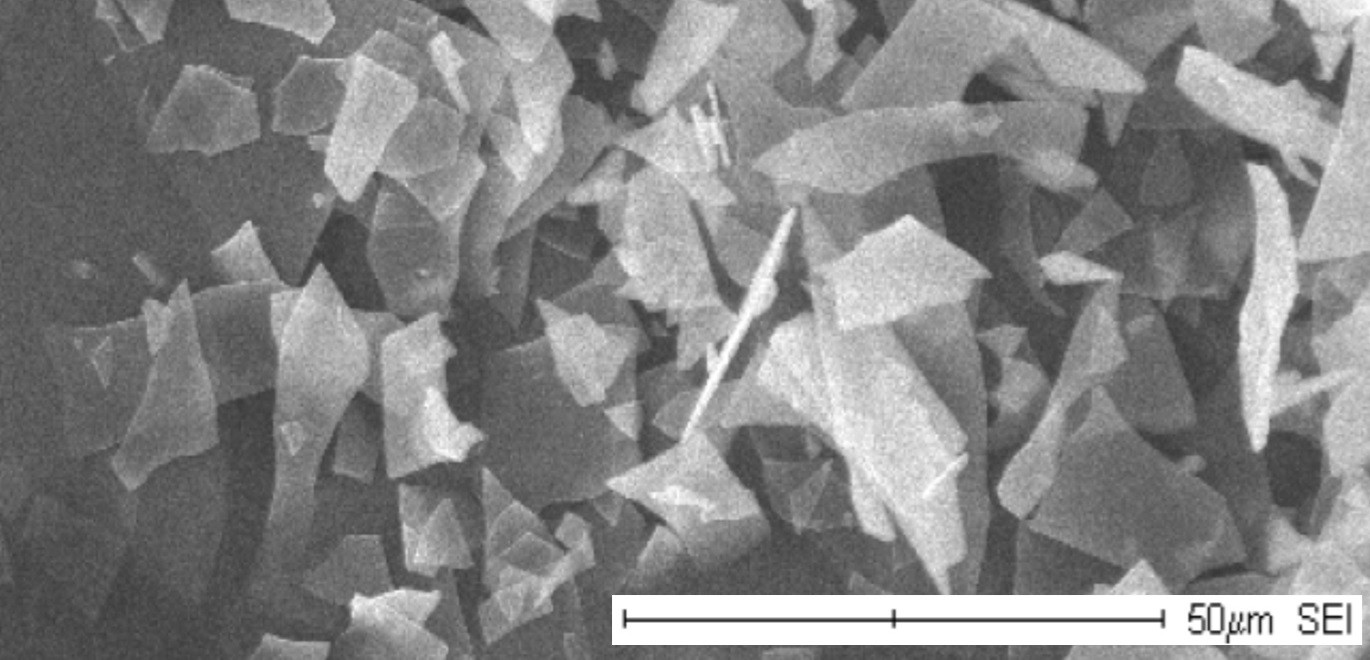

SEM image of SILKYFLAKE®

SEM image of SILKYFLAKE®

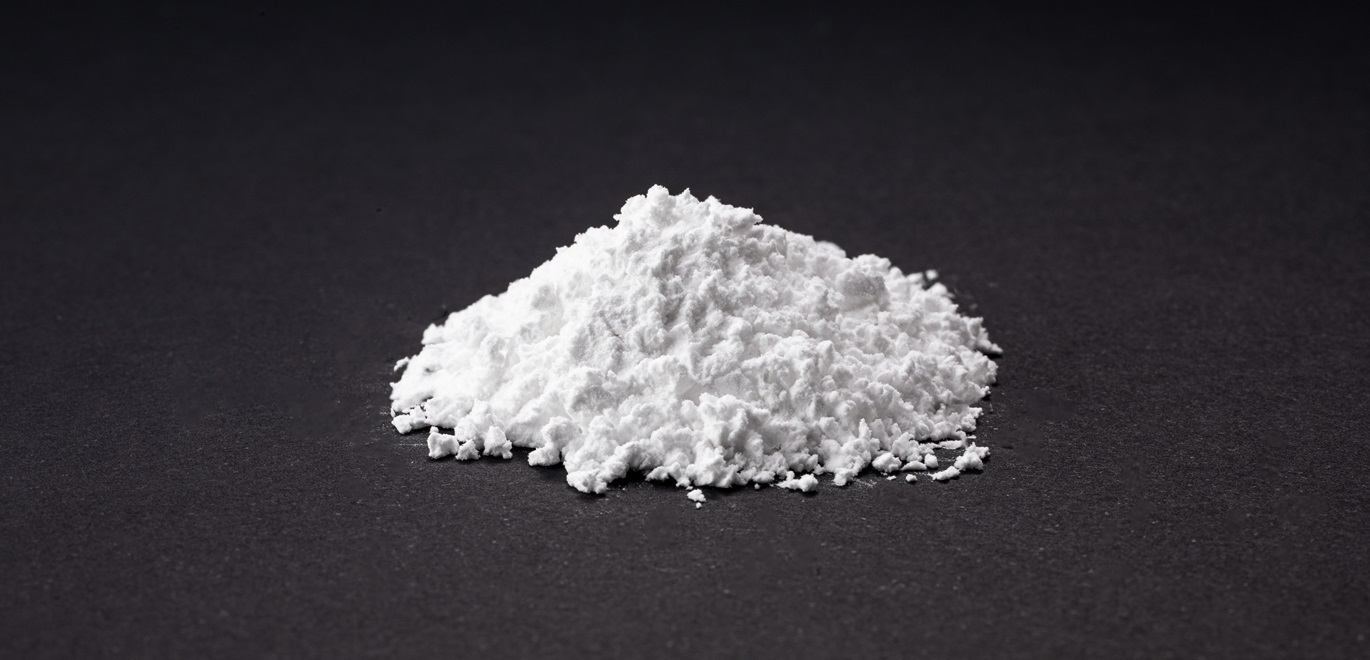

Image of SILKYFLAKE®

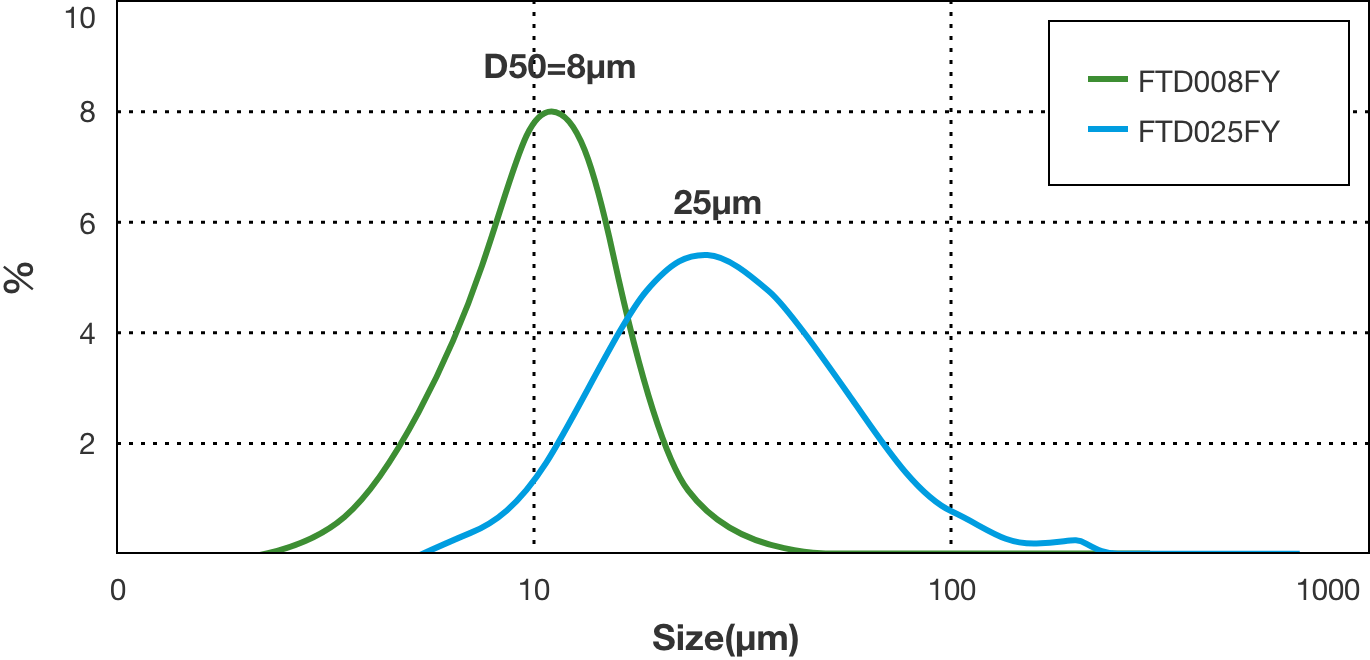

Particle size distribution of SILKYFLAKE®
Effects on the skin
SILKYFLAKE® has a platelet structure that adheres well to the skin with longer makeup effect. The base flake is transparent glass, so it does not look dull in contact with oil and sweat.

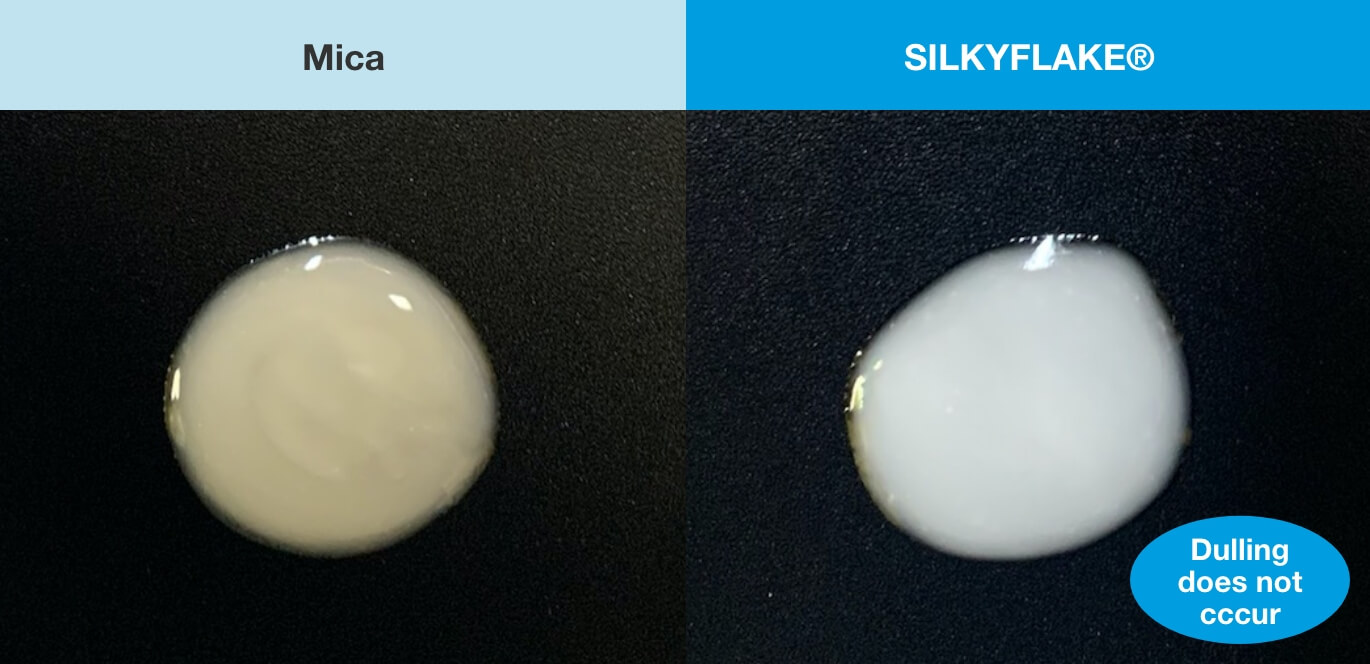

Discoloration when it attaches to sebum (Assessment method: Blend artificial sebum and sample powder, and apply to a black base Dulling does not occur)
Surface treatment
SILKYFLAKE® has a wide lineup of surface treatments. Having surface treatment with hydrogens dimethicone, lauroyl lysine, sodium myristoyl glutamate, and silica eliminates the "creakiness" of the glass. This creates a tactile texture that makes it ideal for use in base makeup.

Effect of surface treatment for texture

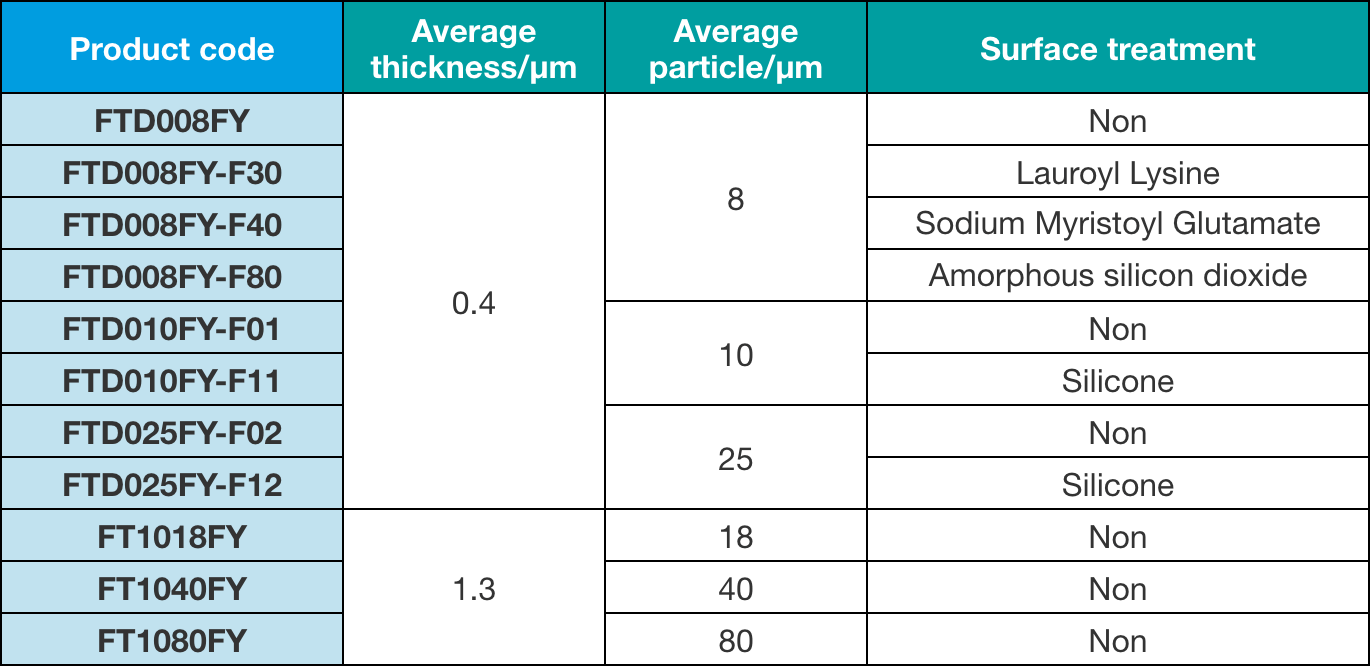

SILKYFLAKE® lineup
Products with different glass flake thicknesses, average particle sizes and surface treatments are offered.

SILKYFLAKE® lineup
Natutect™
High degree of near-infrared reflection is achieved by controlling thickness of the titanium dioxide coated on glass flake at nano meter level. With such a fine flake thickness and particle size, the coated flake is expected to provide natural toning effect on skin.
We also have a lineup of white and skin tone products that can be easily used for base makeup and skin care products.

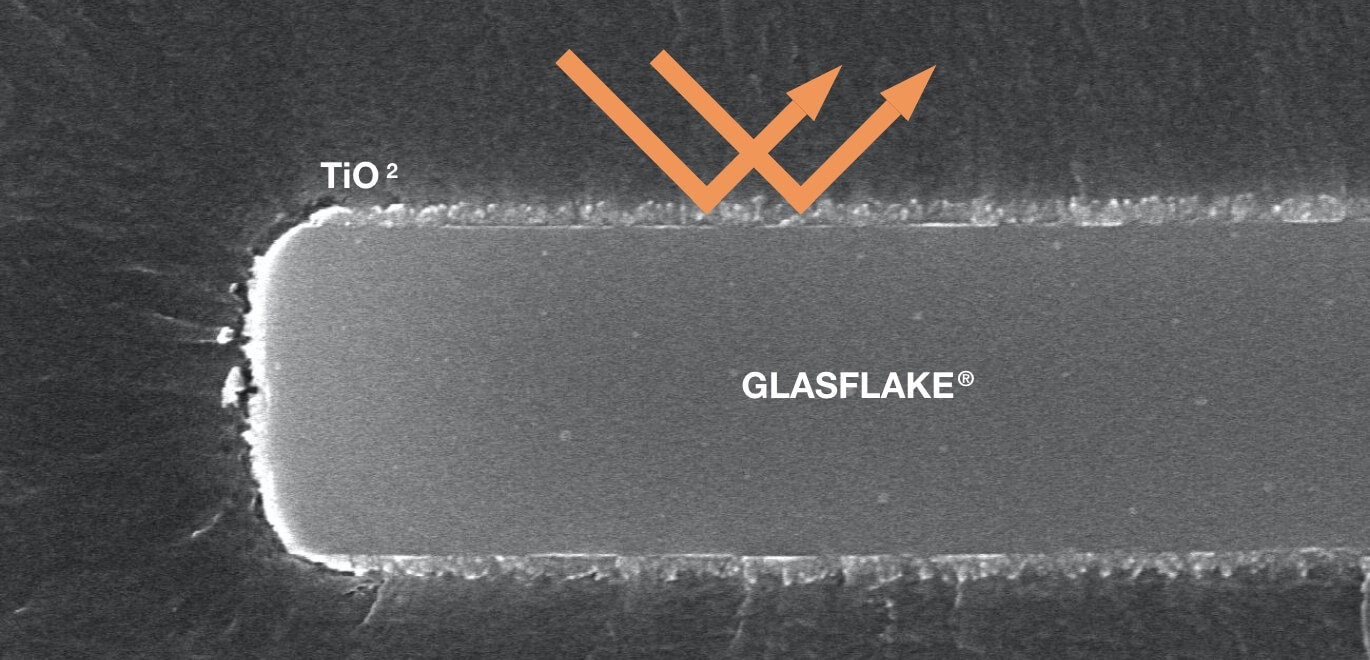

SEM image of cross-section

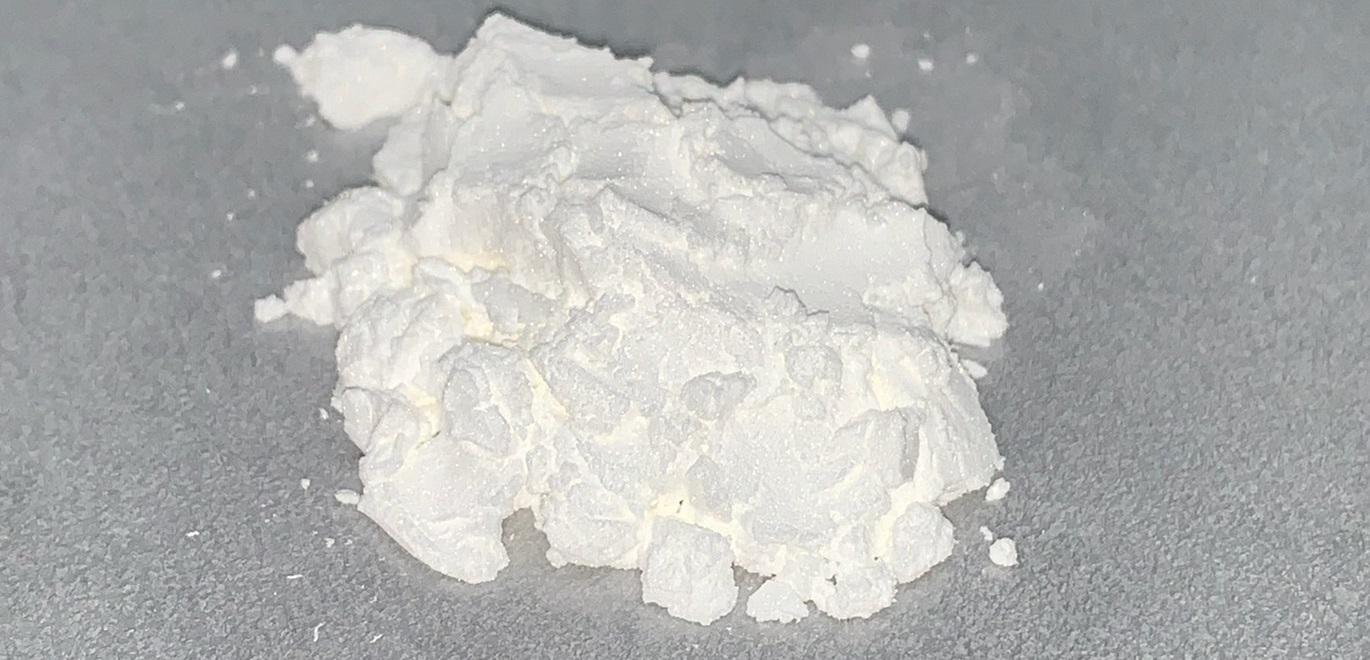

Image of Natutect™ (RO series)

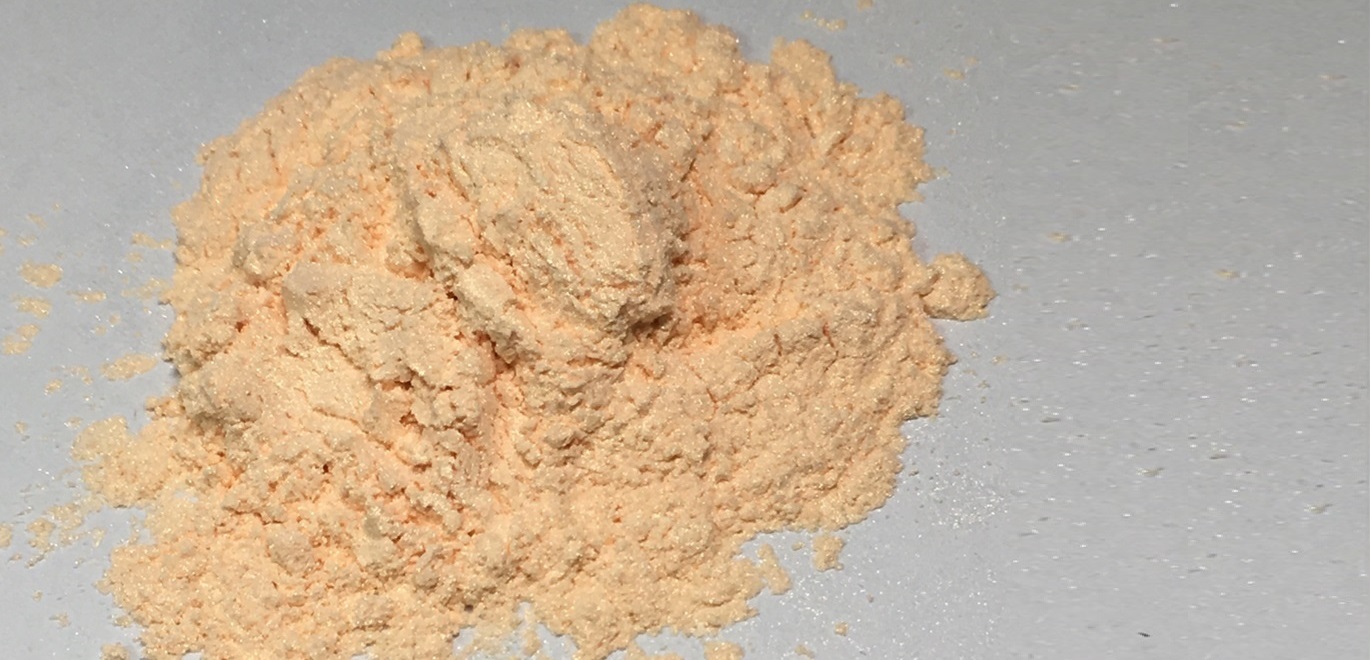

Image of Natutect™ (ZTO series)
Effects on the skin
Natutect™ has an expected effect to restrain damage to the skin and reduce rasing skin temperature by reflecting near-infrared.

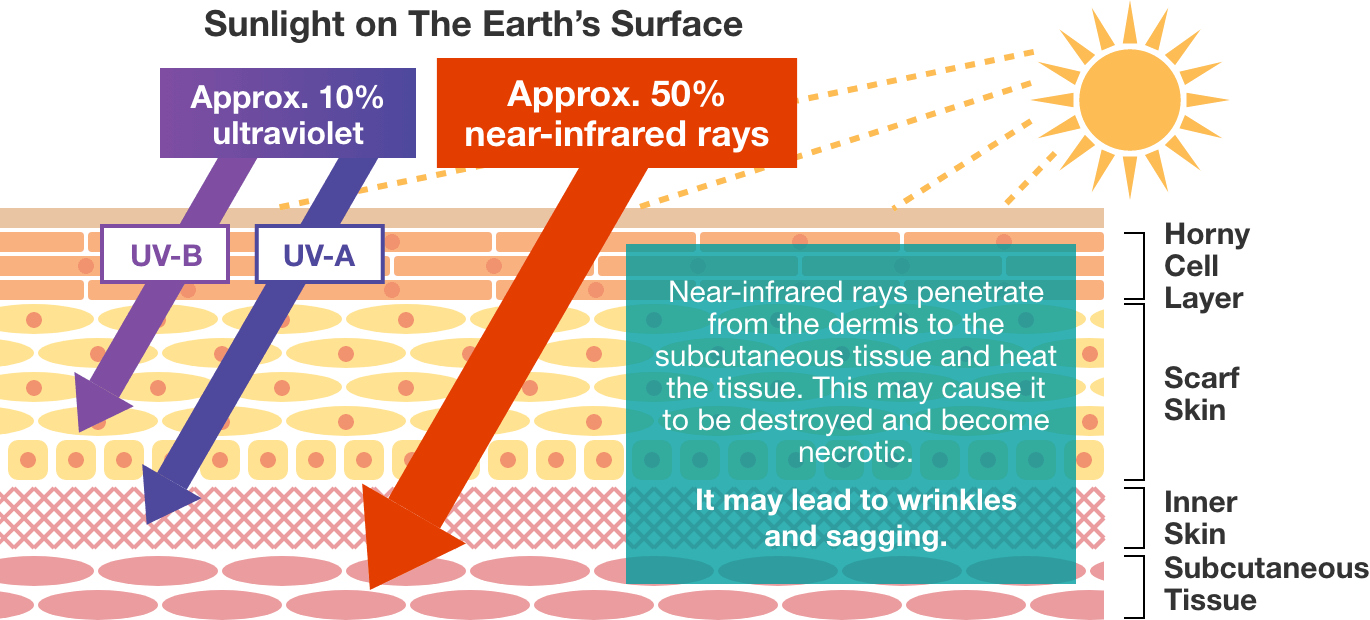

Image of the effect of near-infrared rays on the skin

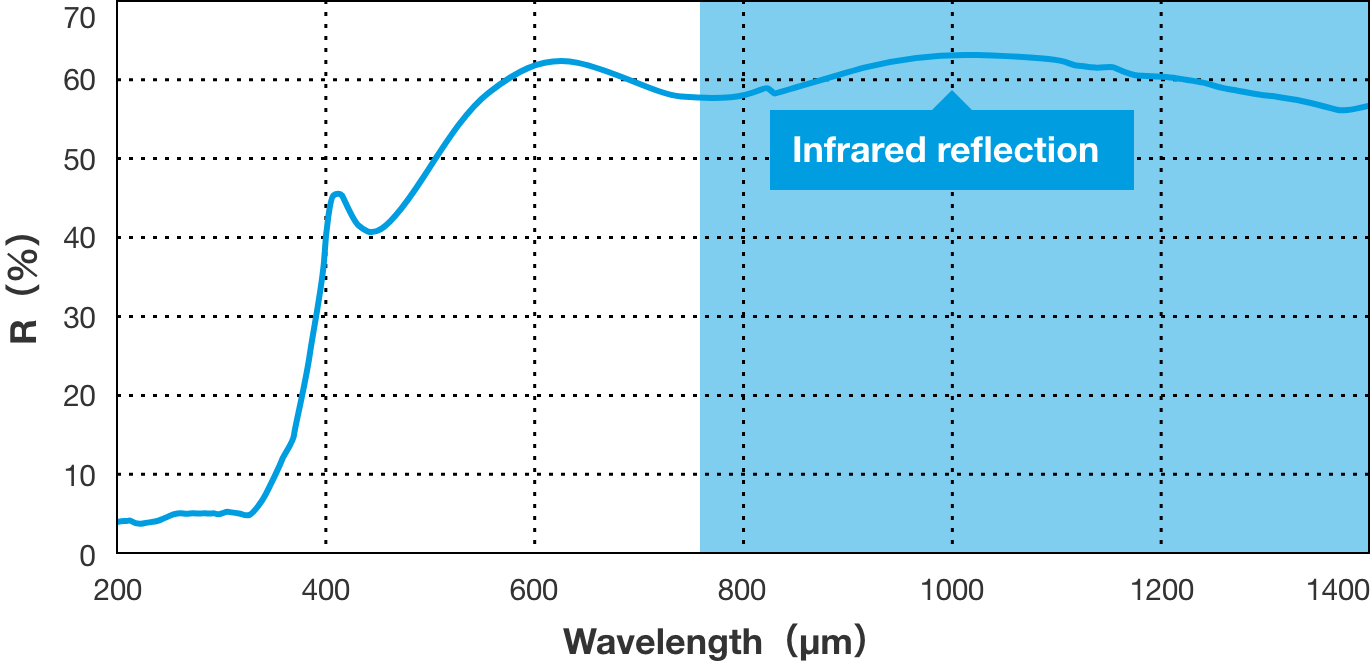

Near-infrared reflective effect by Natutect™ (Near-infrared: 800-1400nm)

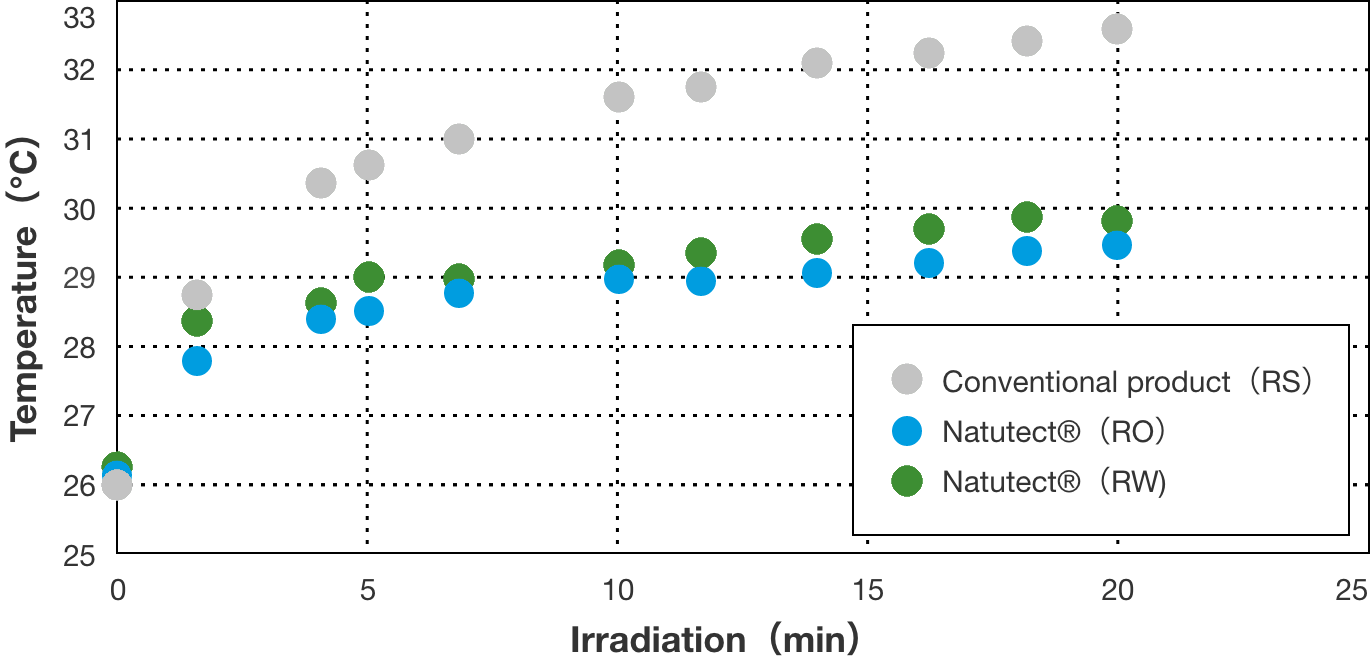

Thermal barrier effect of Natutect™ (Near-infrared light is irradiated on a transparent substrate coated with the sample. (The transparent substrate coated with the sample is irradiated with near-infrared light, and the temperature increase in the object is measured as the transmitted light is irradiated onto the object.)
Natutect™ lineup
Products with different glass flake thicknesses, average particle sizes and color are offered.

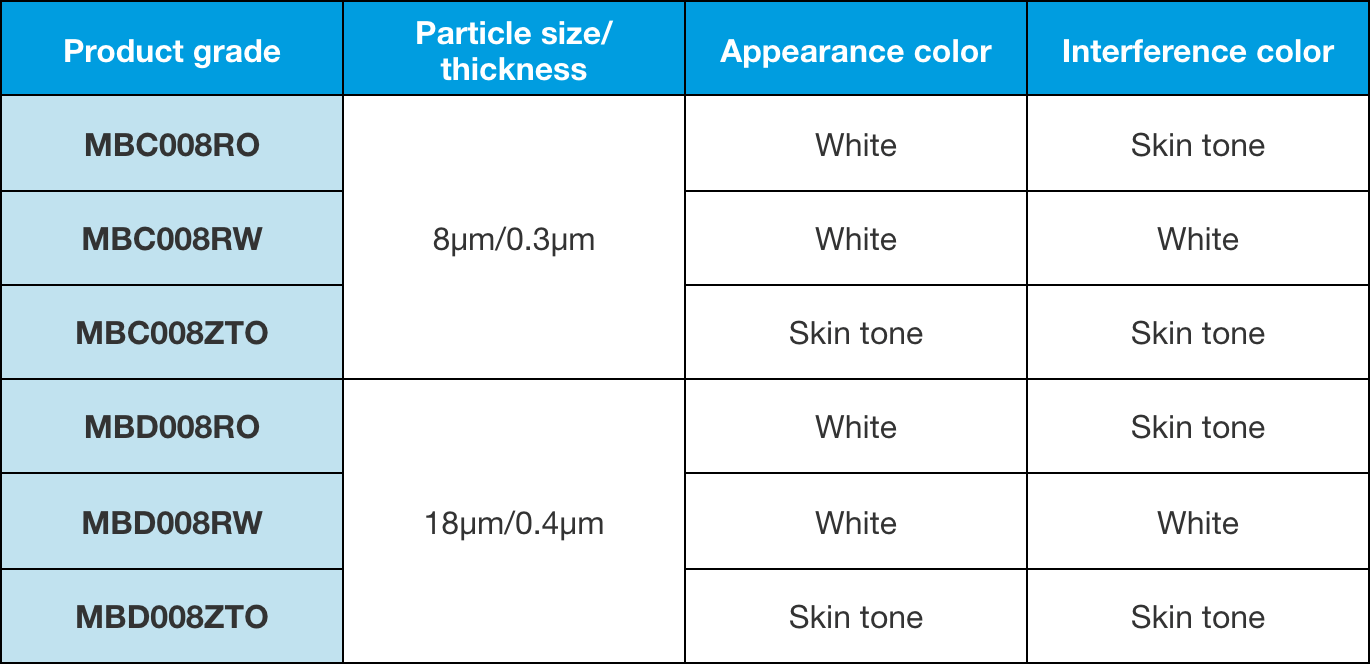

Natutect™ lineup
i-NAFLECS®
Highly dispersed pigments are encapsulated in silica structure. This achieves both a light scattering effect and prevent elution of the pigment. When titanium dioxide is encapsulated, it naturally covers pores and blemishes with its light diffusion effect (so-called soft focus effect).

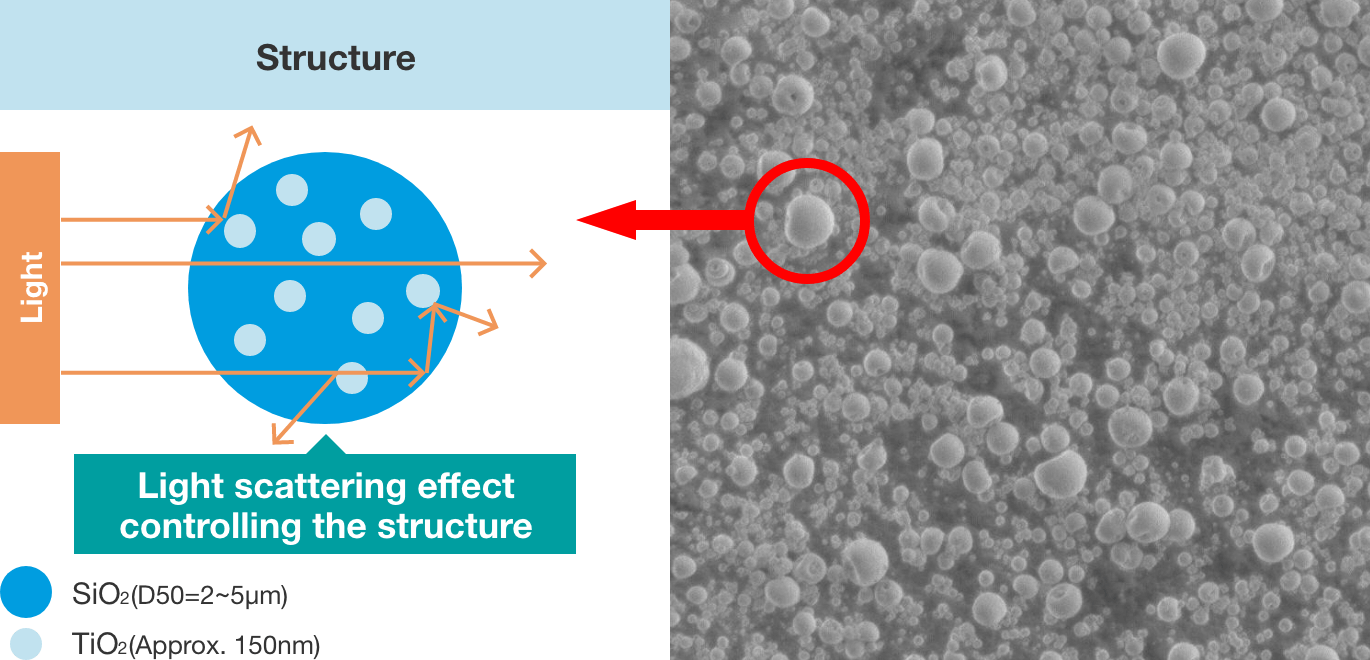

Light diffusion of i-NAFLECS® (titanium dioxide encapsulated type) and SEM image

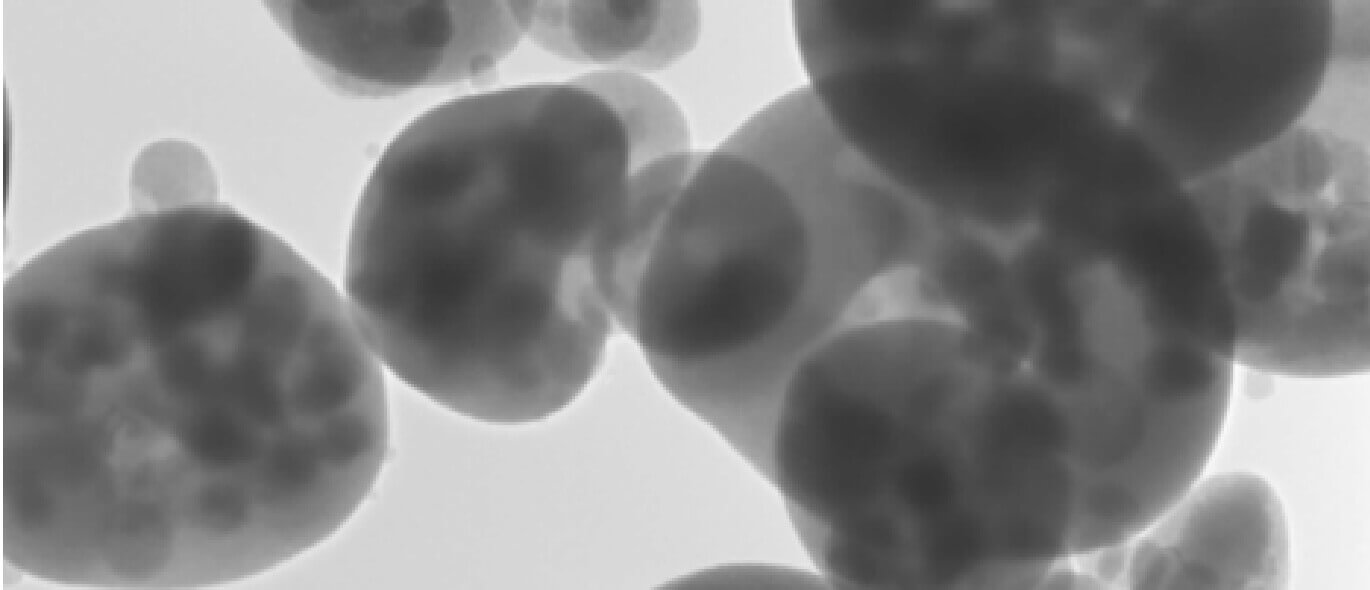

SEM image of i-NAFLECS®
Effects on the skin
i-NAFLECS® has greater texture than titanium dioxide itself as same smoothness as talc. Due to its soft focus effect resulting from light scattering, the titanium dioxide encapsulated type naturally covers pores and does not show white casting.

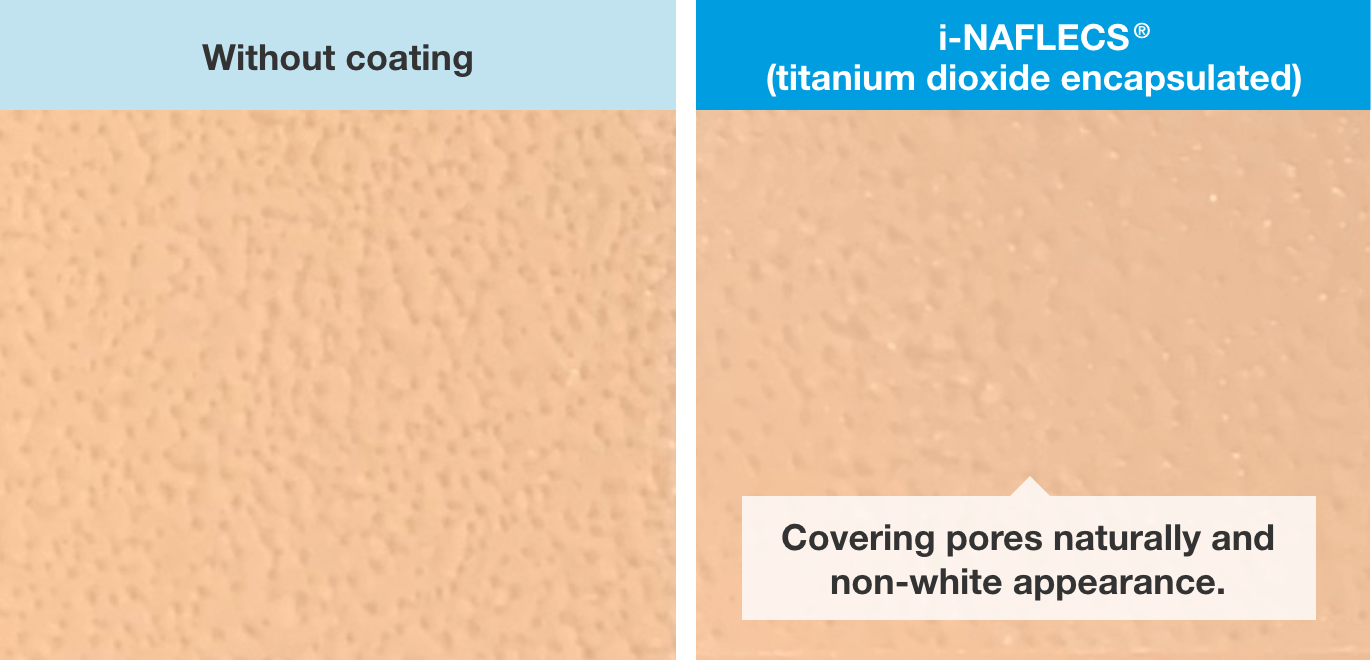

Pore concealing effect of i-NAFLECS® (with powder applied to bioskin plate)

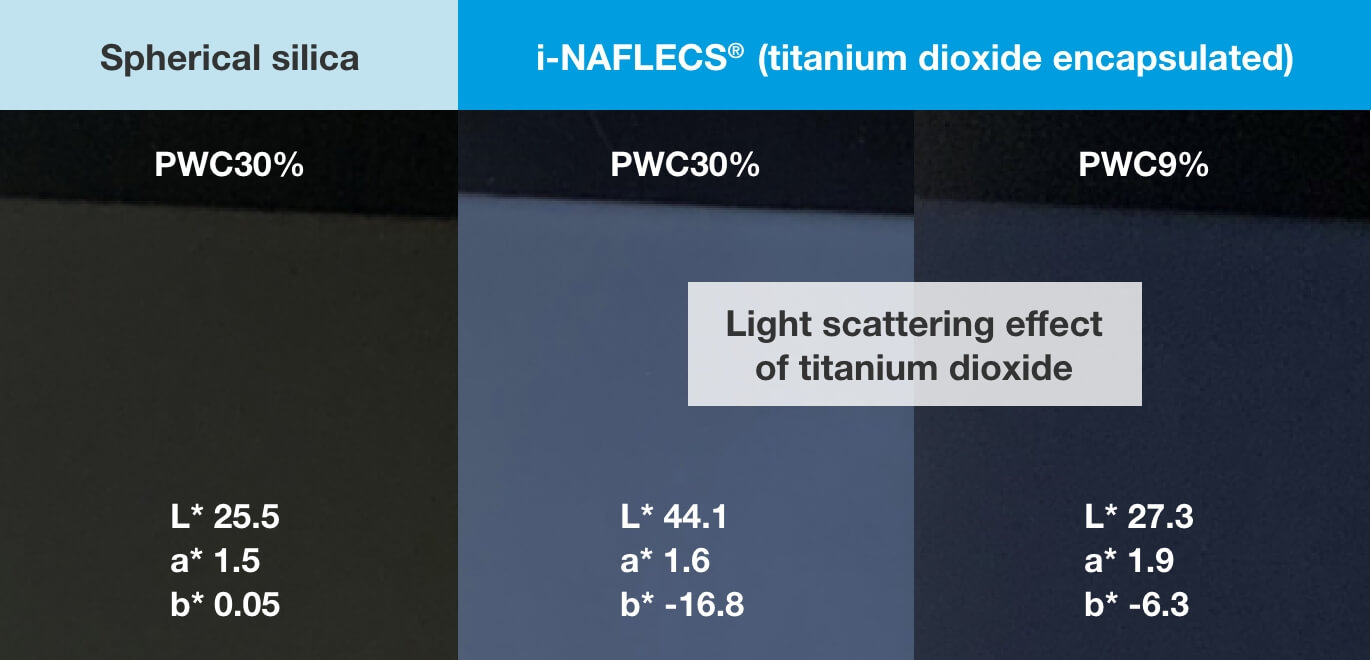

Soft focus of i-NAFLECS® (titanium dioxide encapsulated type) (powder and acrylic resin mixed and applied onto black background)

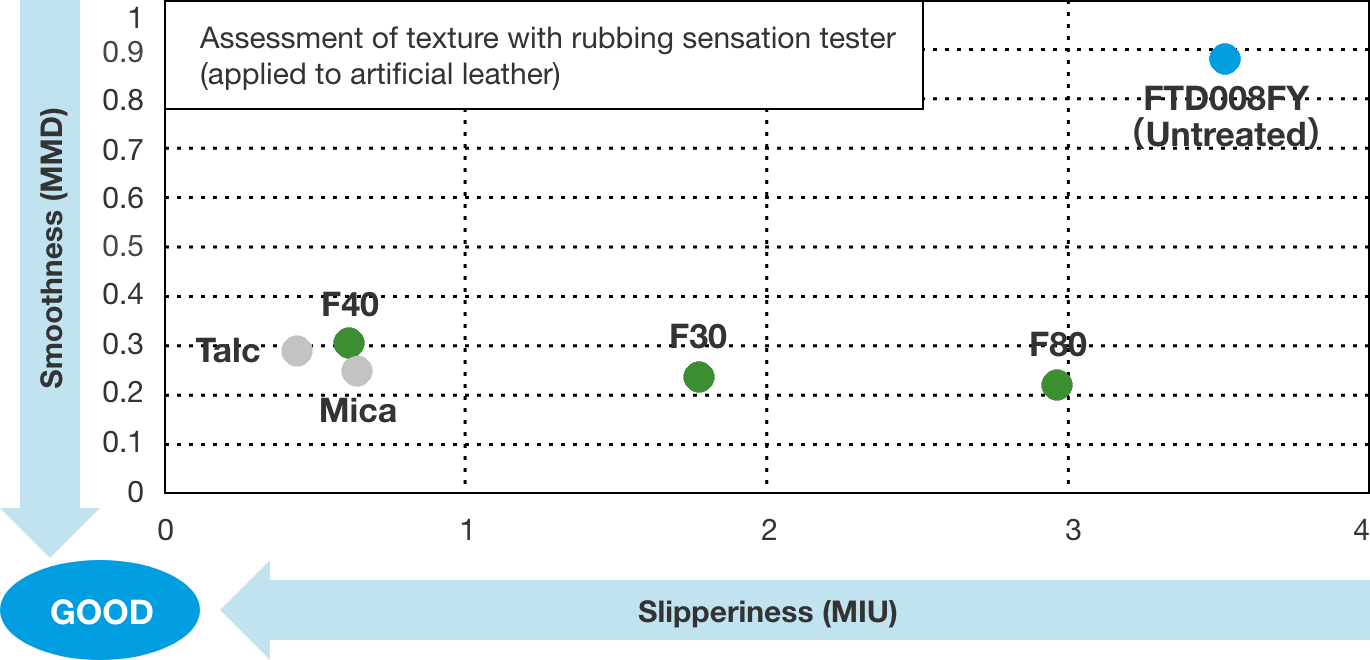

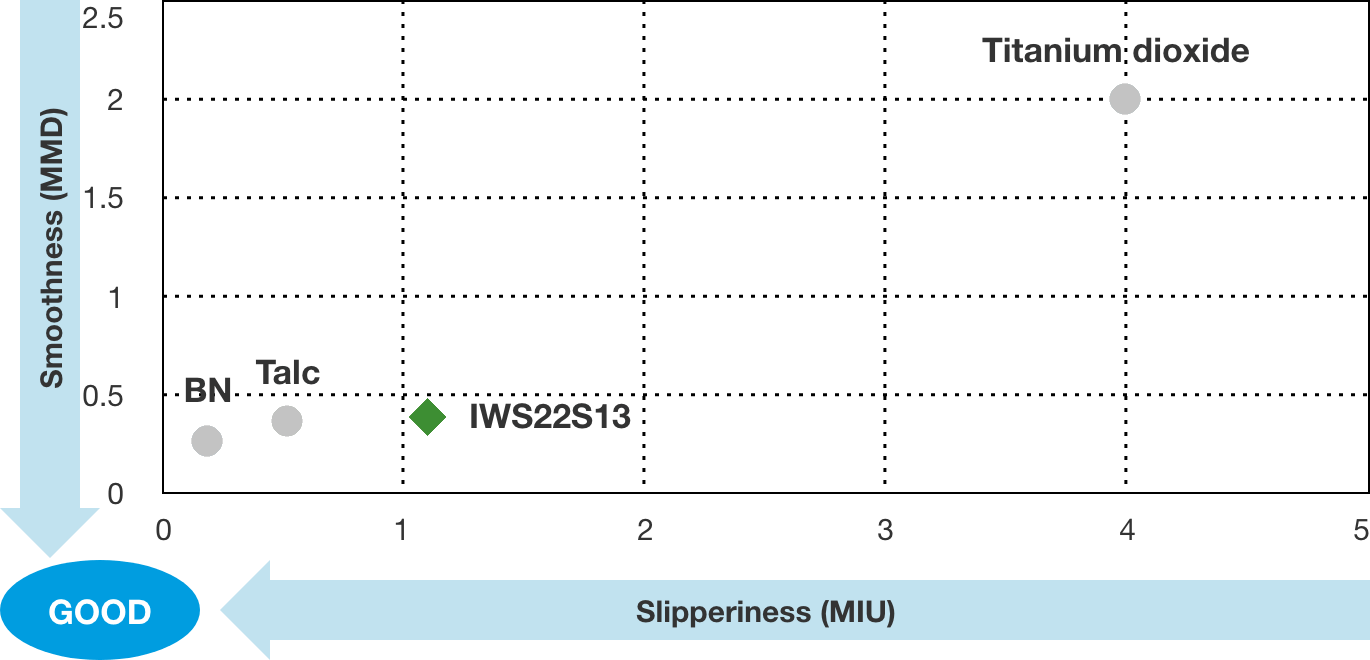

Comparison of texture between i-NAFLECS® and other materials

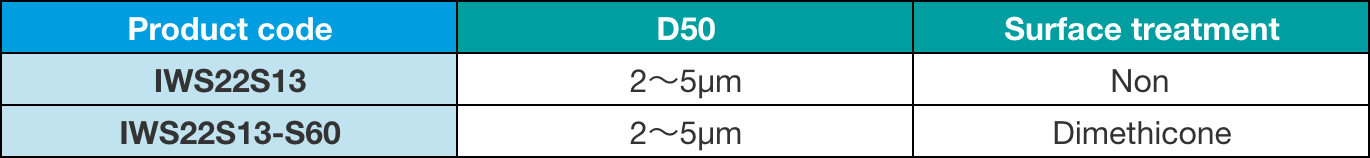

i-NAFLECS® lineup
Non treatment and dimethicone treatment grade are offered. Dimethicone treatment can be used if hydrophobicity is required

i-NAFLECS® lineup
GLACIA DROPS®
This is a glass bead with NSG's original TA glass composition that is gentle to the skin and the environment. It is an inorganic spherical powder, yet soft to the touch and can be used as a micro-plastic beads substitute.

SEM image of GLACIA DROPS®

SEM image of GLACIA DROPS®

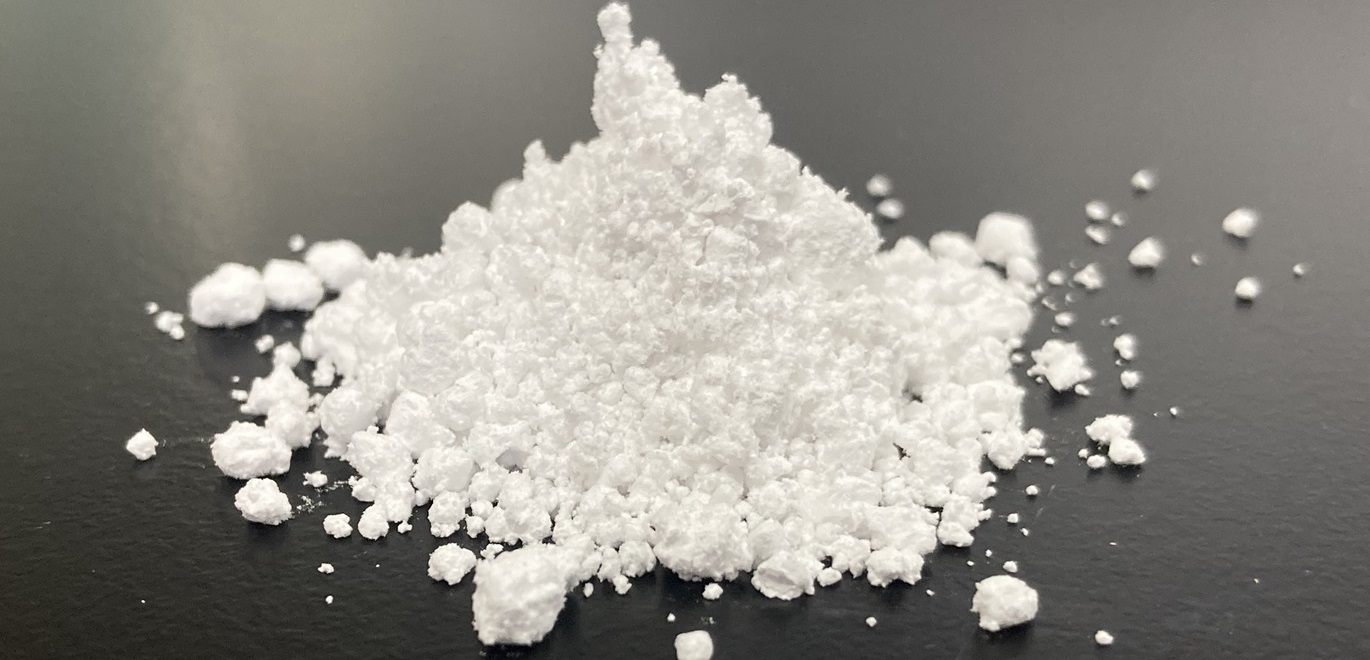

Image of GLACIA DROPS®
Haze value and transparency
GLACIA DROPS® is characterized by its high haze value(soft focus effect) and high transparency. GLACIA DROPS® can be used for both formulations that require soft focus and high transparency.

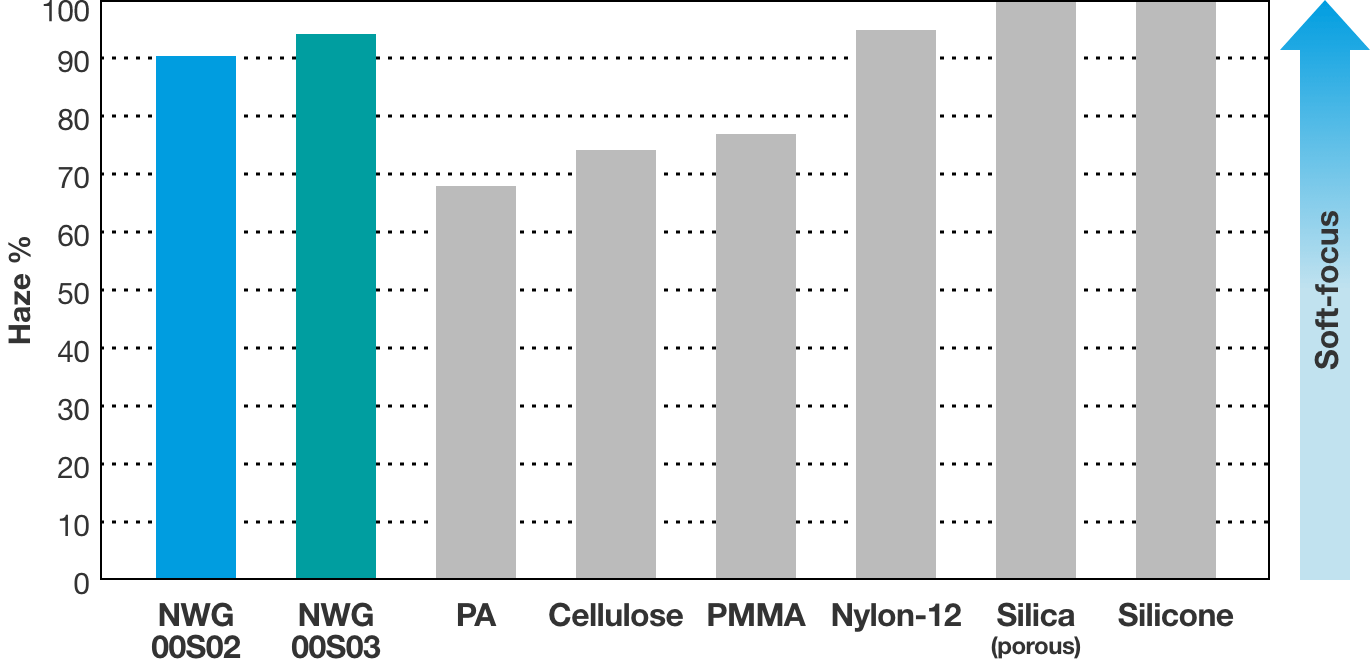

Comparison of haze value between GLACIA DROPS® and other spherical powders (Each powder is mixed with acrylic resin and applied to PP film. Haze value was measured with a haze mater.)

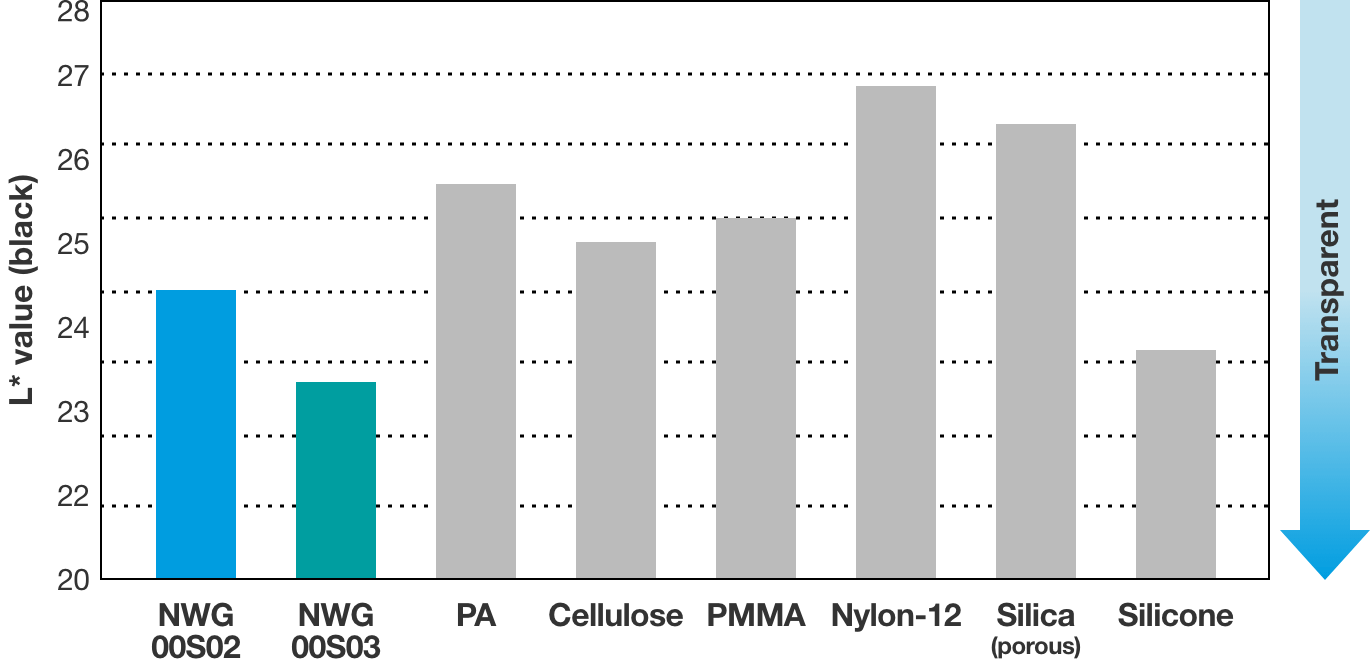

Comparison of transparency between GLACIA DROPS® and other spherical powders (Each powder is mixed with acrylic resin and applied to black drawdown paper. The transparency was evaluated based on the L* value measured by a color meter.)

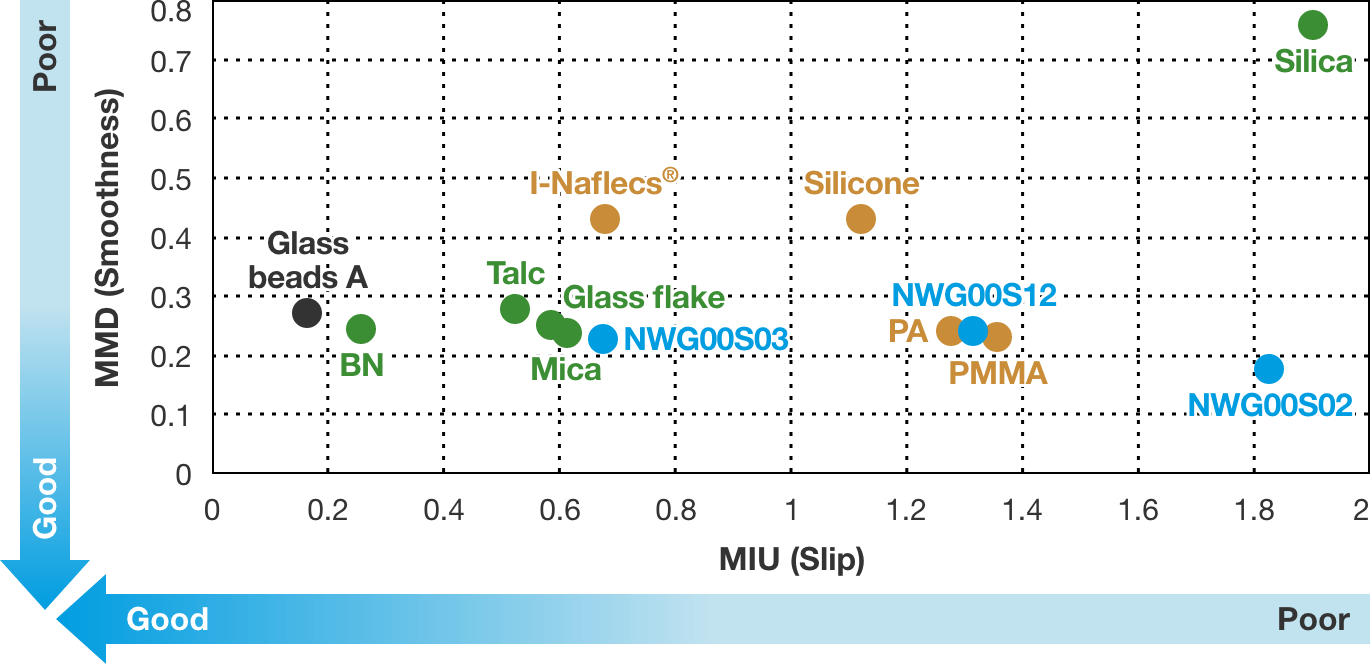

Comparison of texture among GLACIA DROPS® and other materials
GLACIA DROPS® is compared with other materials in terms of texture. If you are looking for alternative materials for microplastic beads or talc, please refer to this chart for your consideration.

Comparison of texture between GLACIA DROPS® and other materials
Press ability
NWG00S02 and NWG00S12 has high press ability and can be used for alternative materials for talc.

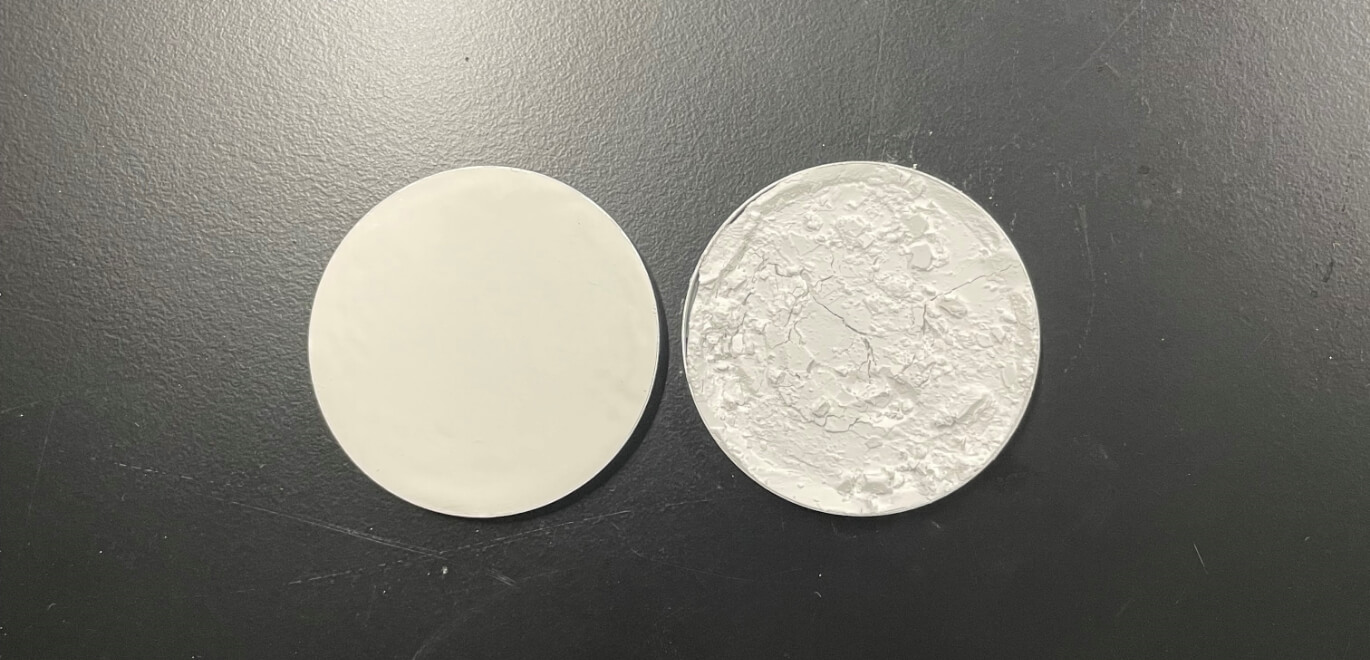

Image of Press molding of Left: GLACIA DROPS® and Right: competitor's commercial product

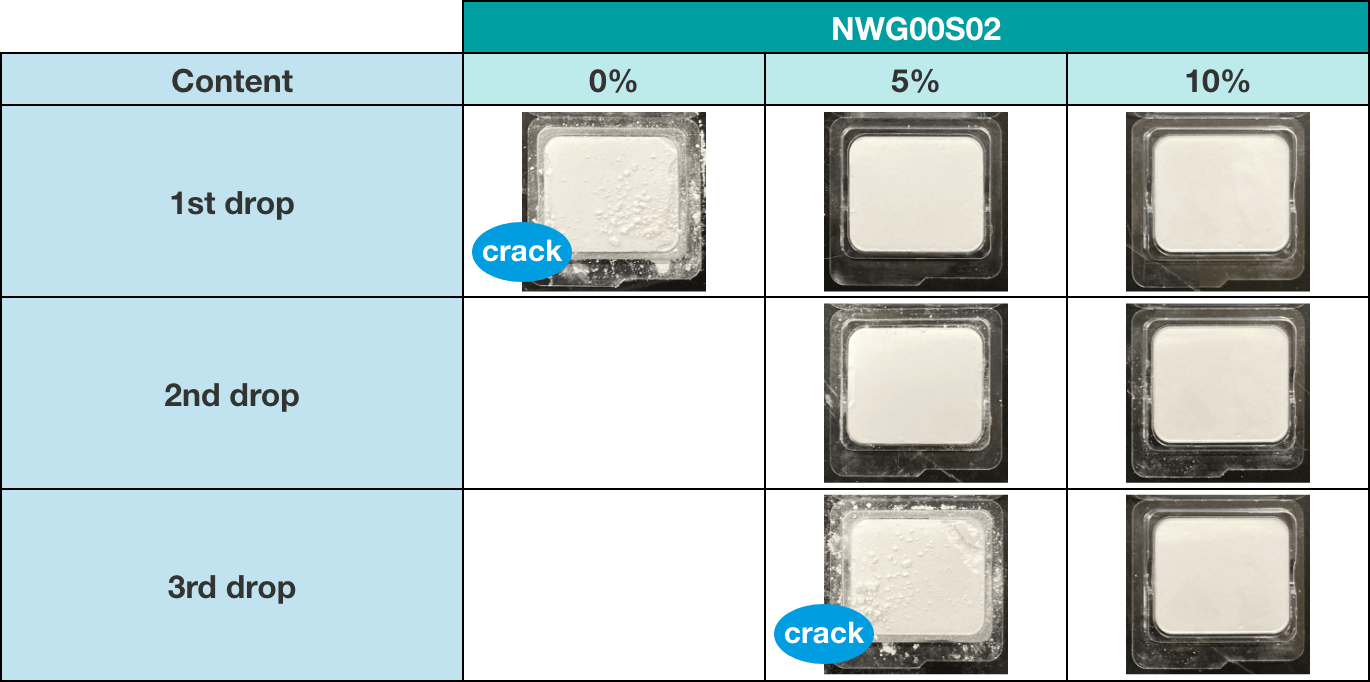

Drop test of press moldings with GLACIA DROPS®

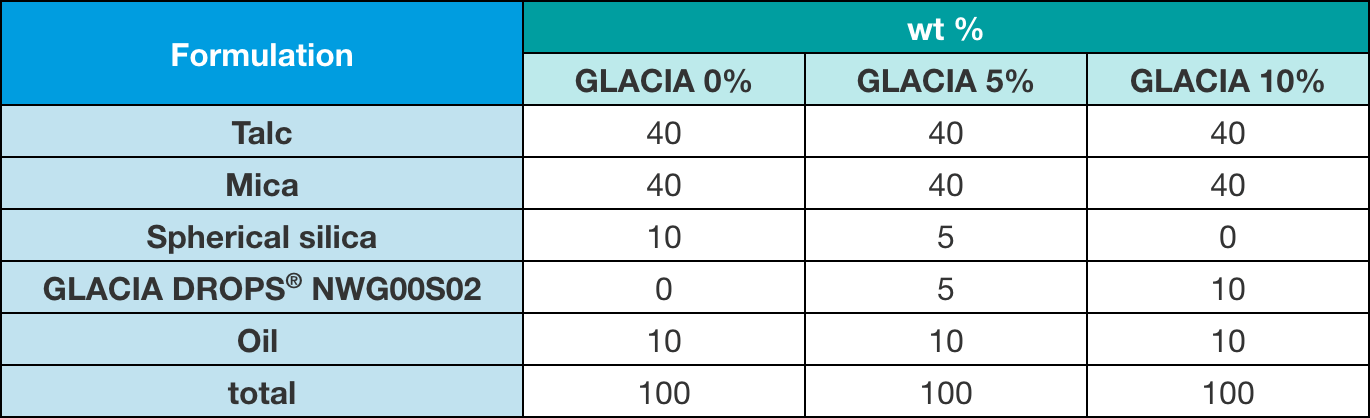

Formulation use for drop test
GLACIA DROPS® line-up
Products with different average particle sizes and texture are offered.

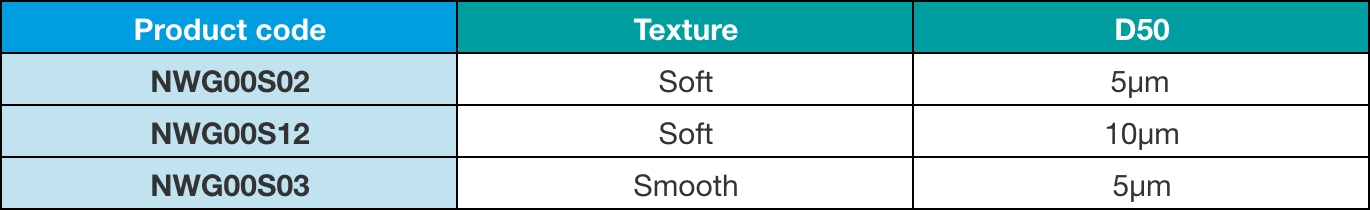

GLACIA DROPS® line-up
Eco-friendly product
Upcycled materials have been attracting attention in the cosmetics industry for several years. We challenged to create a value-added material using fraction of glass flake, which had been discarded by sieving in the original process (METASHINE® process). Using glass flake as a raw material also has the advantage of reducing energy use in the process.

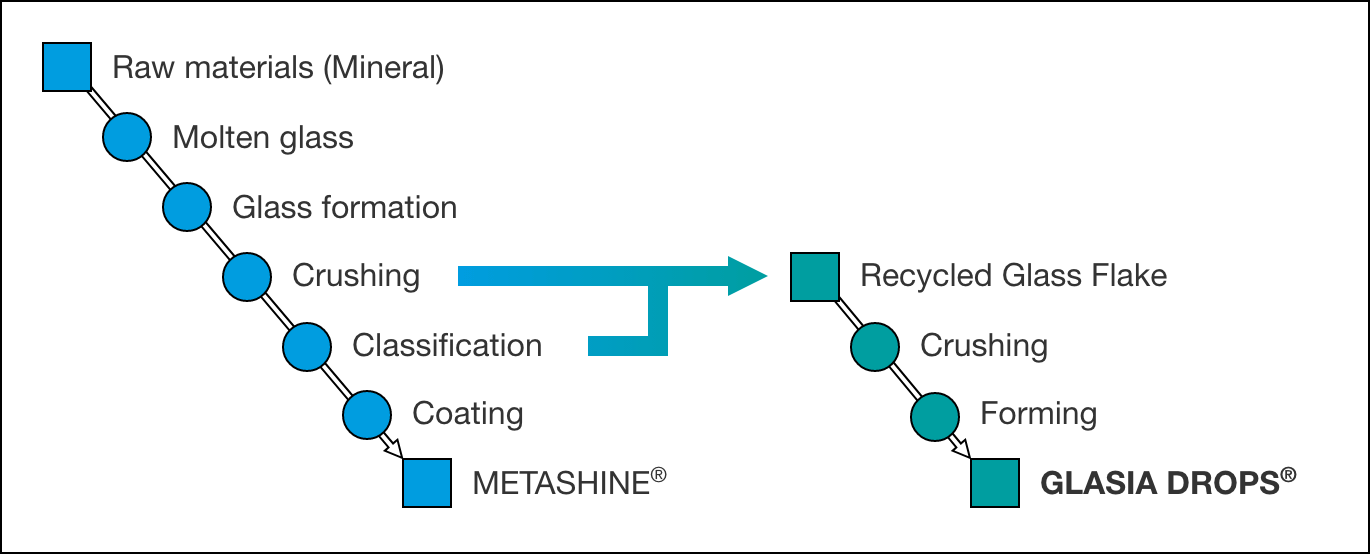

Manufacturing Process of GLACIA DROPS®
Glossary
Light diffusion
Function to scatter incident light
Near infrared rays
Light at wavelength region of infrared rays closest to visible light. Approx. 700-2500nm.
Natural origin index
Calculated percentage of natural raw materials which is defined by ISO 16128 and of naturally sourced parts in naturally sourced raw materials in product. This is based on the guidelines established by the Japan Cosmetic Industry Association.
FAQ
Is it possible to use in water based systems?
Yes, it is. Surface-treated products are also available, so feel free to contact us using the inquiry form on this website.
